RF · AUDIO · TEST ACCESSORIES
Make Every Connection Part of a Reliable Test
Test accuracy depends on more than instruments. Antennas, cables, connectors, adapters, probes and fixtures determine whether signals reach the DUT consistently.
We provide complete connection and fixture solutions for RF, microwave, wireless and audio testing, from standard accessory selection to custom test-tool design.
RF / Microwave Test Interconnect & Accessories
WHY ACCESSORIES MATTER
Instruments Matter, and Every Connection to the DUT Matters Too
In high-frequency testing, cable loss, connector mismatch, adapter count and fixture parasitics all enter the measurement path; in production testing, fixtures also affect takt time, repeatability and contact life。
Reduce Link Loss
Select cables for frequency, power, length and bend requirements.
Maintain Impedance Continuity
Configure interfaces and adapters to reduce reflection and mismatch.
Improve Test Repeatability
Positioning, compression and quick connections reduce operator variation.
Meet Production Takt
Balance performance, mating life, changeover and maintenance cost.
PRODUCT PORTFOLIO
From Standard Accessories to Custom Test Tools
Match the complete test chain to frequency, interfaces, power, DUT structure and use case.
RF CABLE
RF / Microwave Test Cables
Low-loss, phase-stable, flexible and high-frequency cable assemblies.
CONNECTOR
Connectors / Adapters
SMA, N, 3.5 mm, 2.92 mm and 2.4 mm interfaces.
RF FIXTURE
RF Test Fixtures
Convert instrument ports reliably to PCBs, modules and non-standard DUTs.
PROBE
Test Probes / Quick Connections
For wireless terminals, modules and production stations.
AUDIO FIXTURE
Audio / Acoustic Test Fixtures
Positioning and acoustic coupling for headphones, TWS, speakers and microphones.
CUSTOM JIG
Custom Production Fixtures
Integrate positioning, compression, connection, testing and automation.
RF INTERCONNECT
RF Test Connections and Signal-Chain Accessories
At higher frequencies, accessories are part of the measurement system. Consider loss, VSWR, power, mechanical stability and calibration planes together.

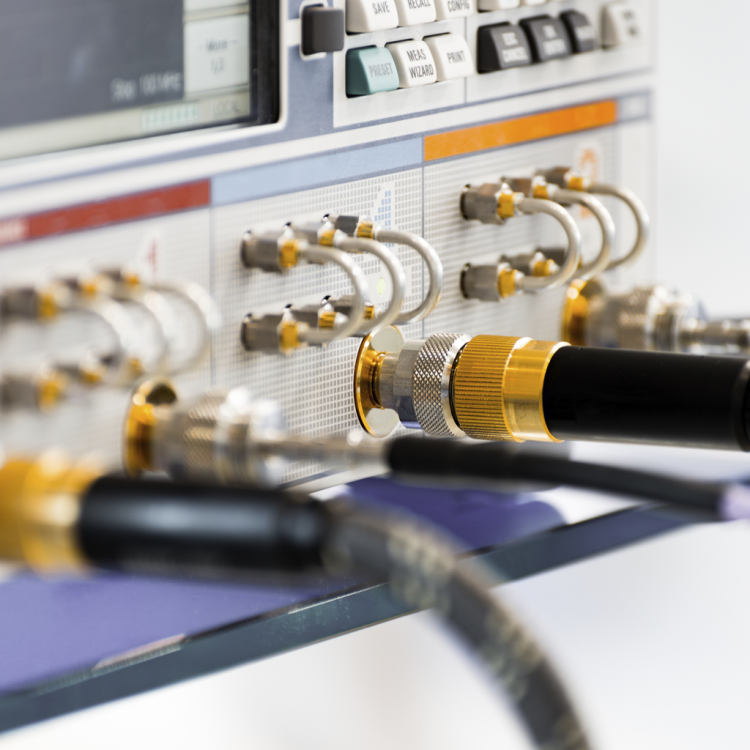

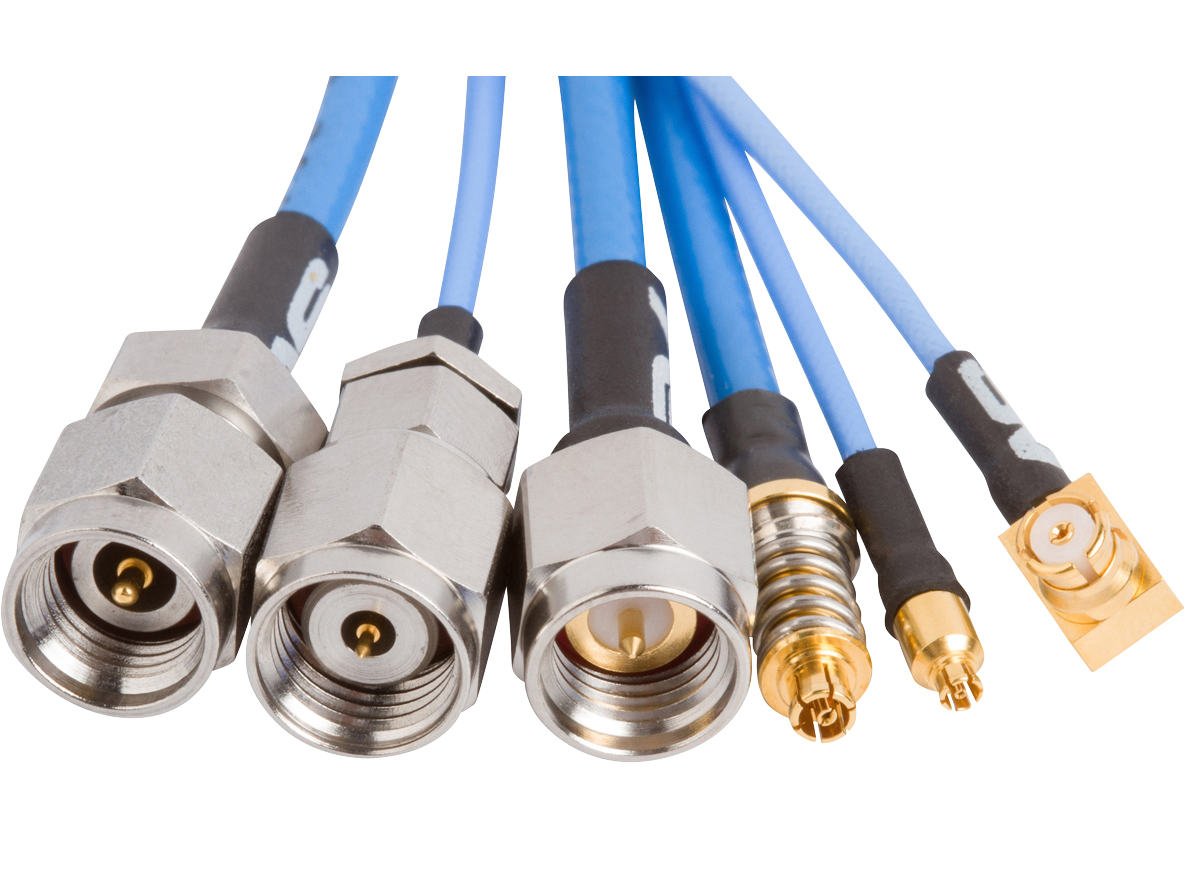

RF / Microwave Cable Assemblies
01 · CABLE / CONNECTOR
Cables, Connectors and Adapters
From instrument ports to the DUT, the connection path must balance frequency range, insertion loss, VSWR, power handling, mechanical flexibility and repeated-mating reliability。
- Low-Loss Test Cables
- Phase-Stable Test Cables
- SMA / N / 3.5 mm
- 2.92 / 2.4 / 1.85 mm
- Interface Adapters
- DC Block / Limiter
02 · ANTENNA / RF COMPONENT
Test Antennas and RF Passive Components
For OTA, EMC, wireless R&D and production testing, configure antennas by band, polarization, gain, power and test distance, matched with attenuators, power dividers, couplers and RF switches。
- Test Antennas
- Attenuators
- Power Dividers
- Directional Couplers
- RF Switch
- Bias Network
Evaluate added loss, reflection, power handling and calibration position for every additional connection.
RF Signal Path Components

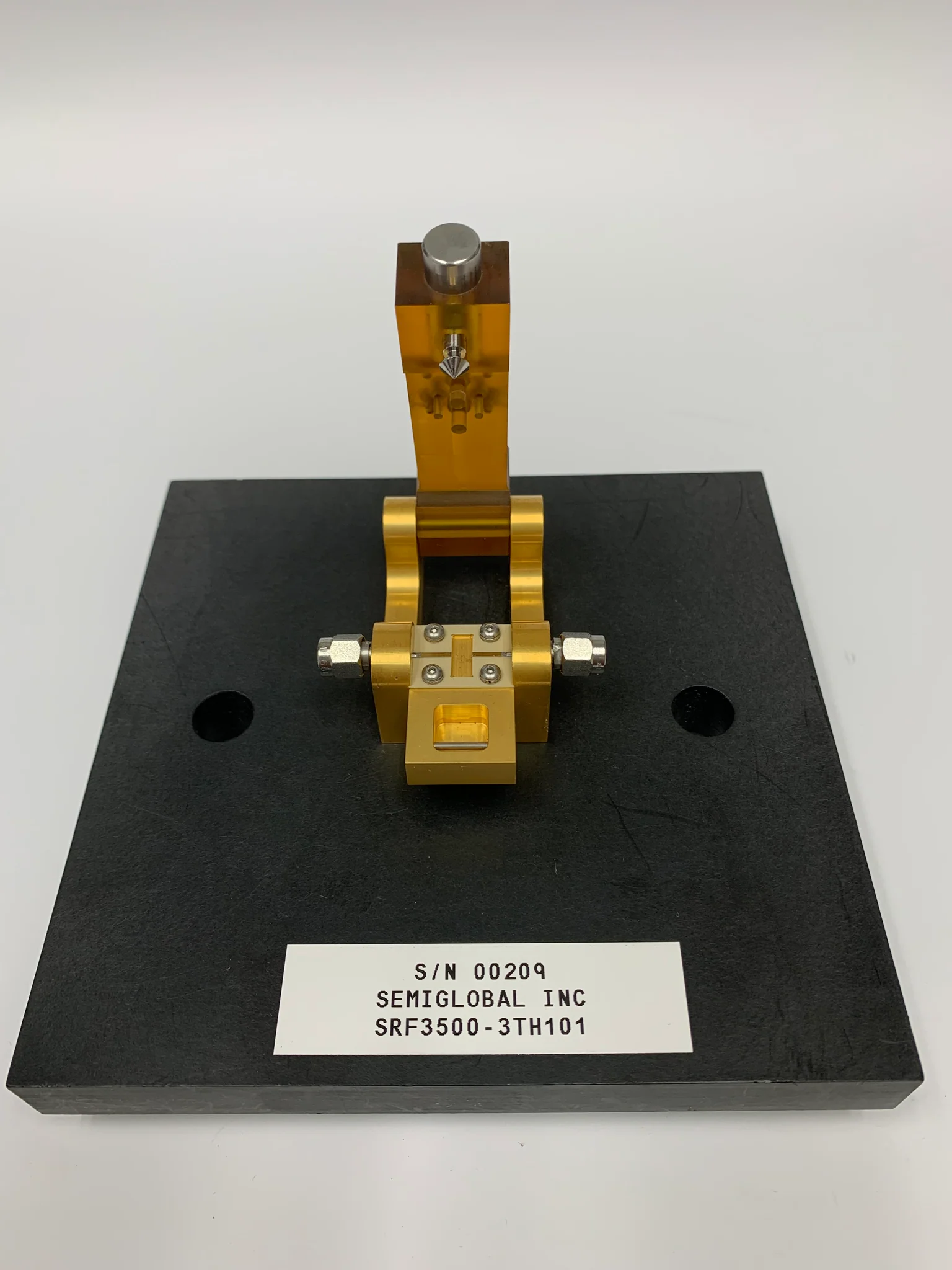

VNA / RF Fixture / DUT Interface
03 · RF FIXTURE / PROBE
RF Fixtures, Probes and DUT Interfaces
When a PCB, module or wireless terminal cannot connect directly to an instrument, fixtures adapt standard coaxial ports to the DUT while handling mechanical positioning, impedance continuity, parasitics, calibration and de-embedding。
- PCB / Module Fixture
- RF Test Probe
- Coax-to-PCB Transition
- Quick Compression and Positioning
- Calibration Structure
- Fixture De-embedding
AUDIO & ACOUSTIC FIXTURE
Audio Testing Also Requires the Right Fixtures and Coupling
For headphone, TWS, speaker and microphone testing, positioning, sealing, ear simulators, measurement microphones and fixture repeatability all affect results。

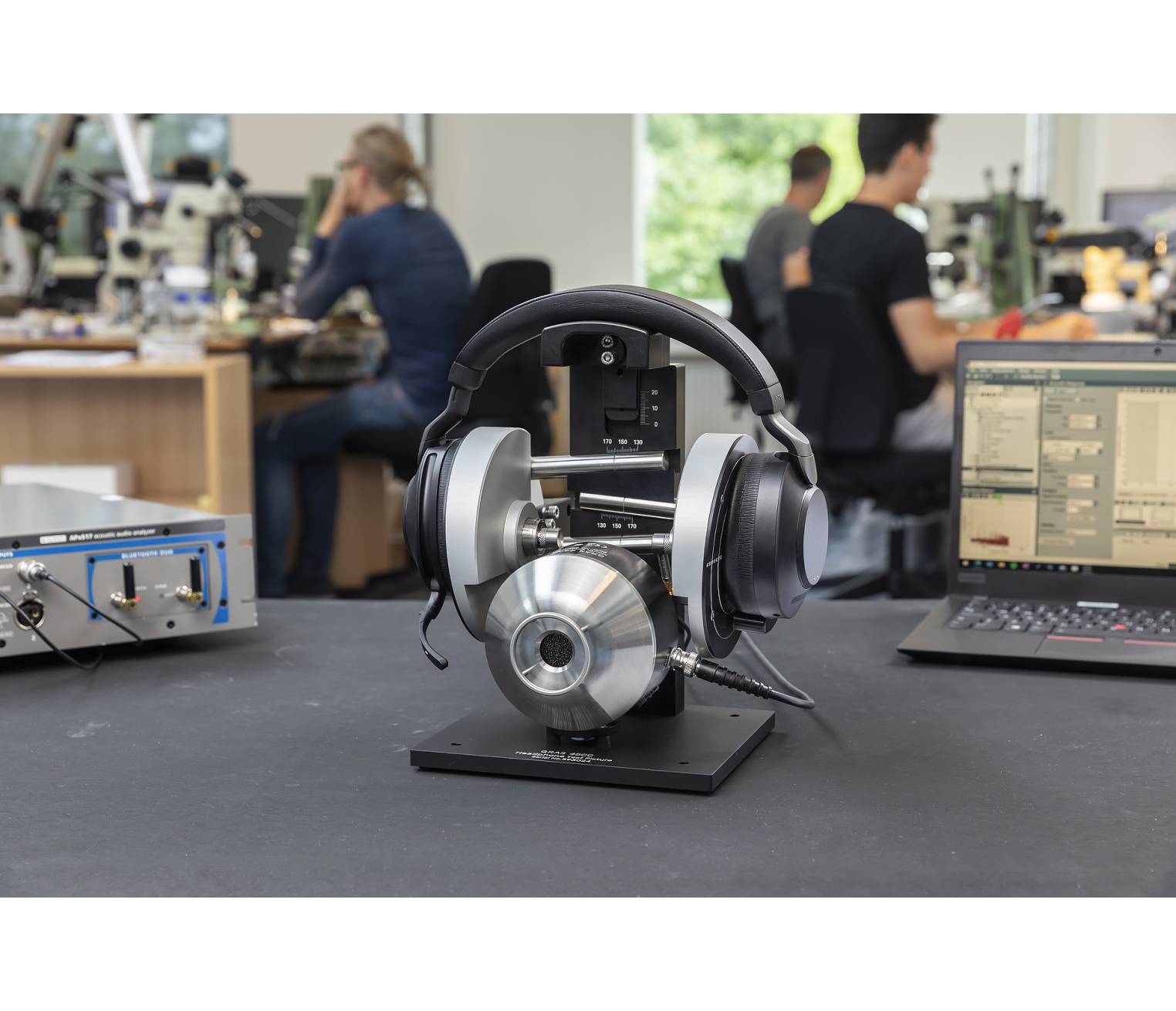

Headphone / Headset Acoustic Test Fixture
Fixtures for Headphones, TWS, Speakers and Microphones
Design stable clamping, sealing, acoustic coupling and positioning structures for each product form so laboratory methods work reliably on the production line。
- Headphone Fixture
- TWS Jig
- Ear Simulator / Coupler
- Speaker Fixture
- Microphone Fixture
- Measurement Microphone
CUSTOM ENGINEERING
No Standard Product Interface? We Build the Test Interface
Many mass-produced products have no standard port for direct instrument connection. What is needed is an integrated design of a product-specific interface, mechanical fixture and automatic control。
01
Confirm the DUTDimensions, interfaces, test points, frequency and power.02
Design the ConnectionCoaxial, probe, spring contact, pogo or acoustic coupling.03
Mechanical Fixture DesignPositioning, compression, mistake-proofing and quick changeover.04
Verify Test PerformanceVerify loss, repeatability and contact stability.05
Production and MaintenanceMating life, calibration intervals and spare-parts management.APPLICATION CASE
A Good Fixture Turns Complex Testing into One Simple Operation
The value is not merely making a connection, but keeping repeated testing stable, fast and maintainable.

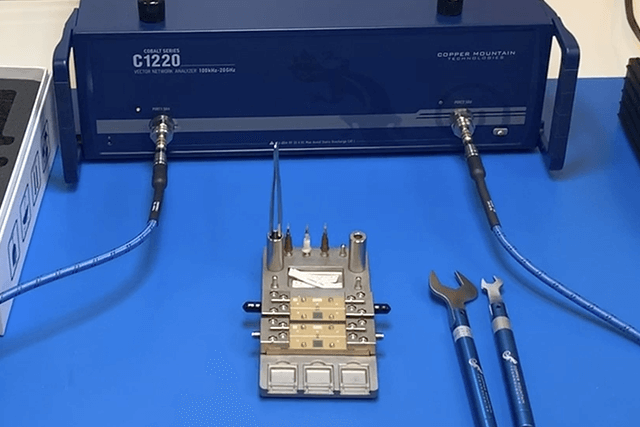

Custom RF Fixture / Production Test Interface
CASE EXAMPLE · WIRELESS MODULE
Wireless Module Production-Test Interfaces and Fixtures
For wireless modules that are unsuitable for repeated manual mating, we design DUT positioning, RF test points, quick-compression probes, low-loss cables and instrument-side adapters as one system。
Turn manual screw-on steps into a standard station flow: place the product, compress, test automatically, release and remove. Wear parts are designed as quick-maintenance modules。
- Stable RF Contact
- Reduce Connection Time
- Quick Replacement of Wear Parts
- Automation / MES Ready
CONTACT US
Tell Us the Frequency, Interfaces and DUT; We Will Complete the Test Chain
Instrument models, DUT photos, interface drawings, frequency range and existing test methods can be used for accessory selection and fixture planning。
Contact Us Directly
Ask us about standard accessories, custom cables, alternative selections and tailored fixtures。
