High-Precision Test Shielded Boxes, Custom Experts for Full-Band Applications

Solve RF interference and avoid unstable or inflated test results. Designed for 5G/6G, Wi-Fi 7, IoT precision device production lines, and R&D testing. Drawings can be prepared in as fast as 4 days, with flexible customization from the source factory.

Get a Custom Solution and Price Now

Widely Used in Advanced Technology Test Scenarios

Wireless Communication and Smart Terminal Testing

Wireless Communication and Smart Terminal Testing

Completely isolates external RF signal interference such as Wi-Fi and public base-station signals, enabling accurate throughput, sensitivity, and transmit power testing.

  • Smartphone and tablet testing
  • Wi-Fi router and CPE analysis
  • Bluetooth earbud and speaker calibration

Automotive Electronics and IoT Module Testing

Builds an independent RF test island in complex electromagnetic production environments, helping ensure first-pass yield for automotive ECUs, radar modules, and wireless modules.

  • Automotive T-Box, smart cockpit, and radar module testing
  • Batch inspection of industrial IoT Zigbee and NB-IoT modules
  • Preliminary electromagnetic immunity checks for precision medical wireless monitors
Automotive Electronics and IoT Module Testing

How to Select and Define the Right Shielded Box?

Choosing the wrong parameters can lead to inaccurate test results or wasted budget. As a source manufacturer, we recommend defining your custom solution through the following four steps:

01

Define the Test Frequency Band

Confirm the wireless operating frequency of your product, such as 2.4GHz Bluetooth, 5.8GHz Wi-Fi, or high-frequency millimeter wave. The frequency band determines absorber thickness and filter selection.

02

Evaluate Shielding Requirements

How strong is the electromagnetic background noise in the external environment? How many dB of leakage reduction do you expect inside the box? Production-line batch testing typically uses 65-70dB, while R&D laboratories often require >80dB.

03

Estimate Working Dimensions

In addition to the DUT size, include extra space for internal test fixtures, cylinders, and probe placement. We recommend increasing length, width, and height by at least 50mm-100mm beyond the actual product size.

04

List Interface Requirements

List all cables that need to enter from outside the box during testing, such as USB for power, RJ45 for data, and low-loss RF coaxial SMA/N interfaces for instruments.

Precision Manufacturing, Refined for Three Core Performance Advantages

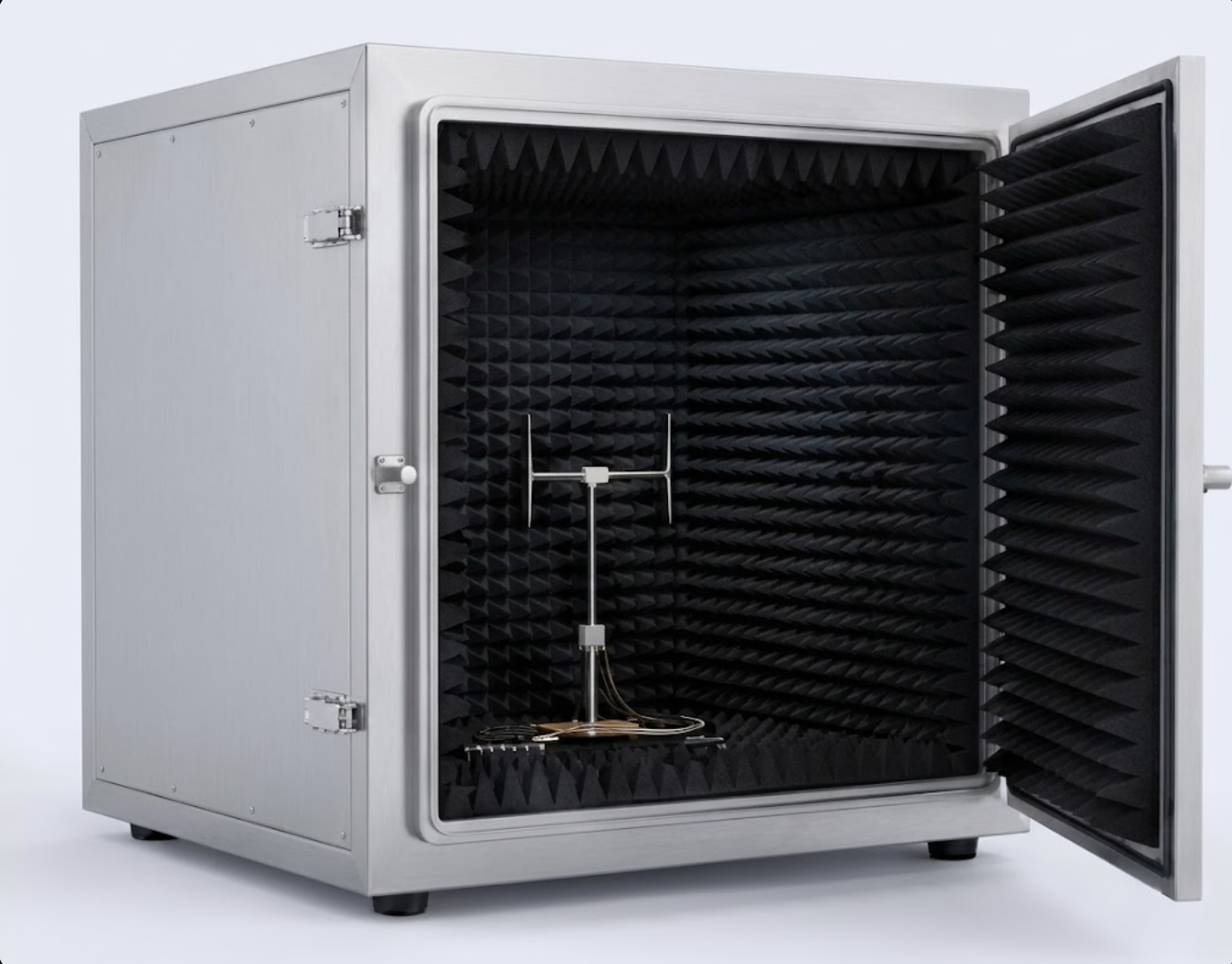

1. Ultra-Wide Frequency Range and Strong Shielding Effectiveness

1. Ultra-Wide Frequency Range and Strong Shielding Effectiveness

Supports wideband testing from 100MHz to 12GHz, ensuring a clean wireless environment inside the box.

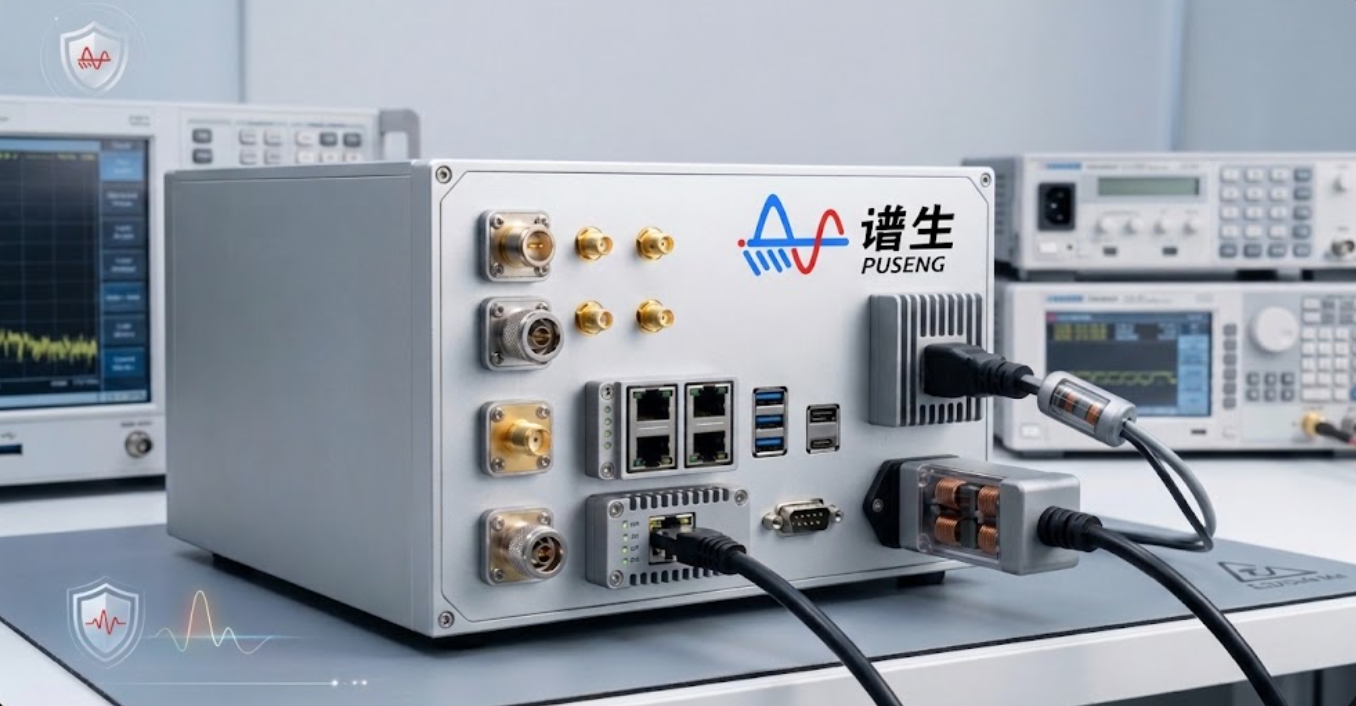

2. Rich, Highly Matched Low-Loss Interfaces

2. Rich, Highly Matched Low-Loss Interfaces

Provides data and power filter configurations to ensure stable, reliable signal transmission when cables enter and exit the box.

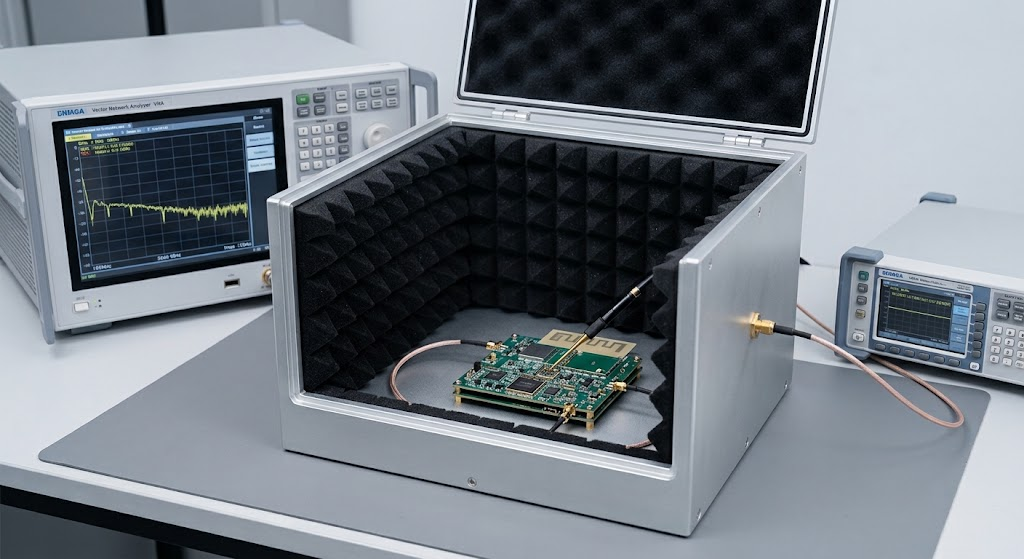

3. Multiple Actuation Methods and Mechanical Anti-Pinch Design

3. Multiple Actuation Methods and Mechanical Anti-Pinch Design

Supports manual, drawer-style, and pneumatic opening and closing, with configurable safety protection.

Core Products

Industry-leading high-performance test equipment

High-Performance RF / Wireless Test Shielded Box

High-Performance RF / Wireless Test Shielded Box

Suitable for precision RF testing of Wi-Fi 7, 5G/6G base stations, Bluetooth devices, automotive electronics modules, and similar products, fully isolating external electromagnetic noise.

  • Frequency range: 100MHz ~ 12GHz, supports ultra-wideband expansion
  • Shielding effectiveness: typical value > 75dB @ 2.4GHz / 5.8GHz
  • Filter configuration: custom data-line, power-line, and optical-fiber filters
  • Actuation: manual flip/drawer type, optional pneumatic vertical/horizontal interlock
Get a Quote for This Product

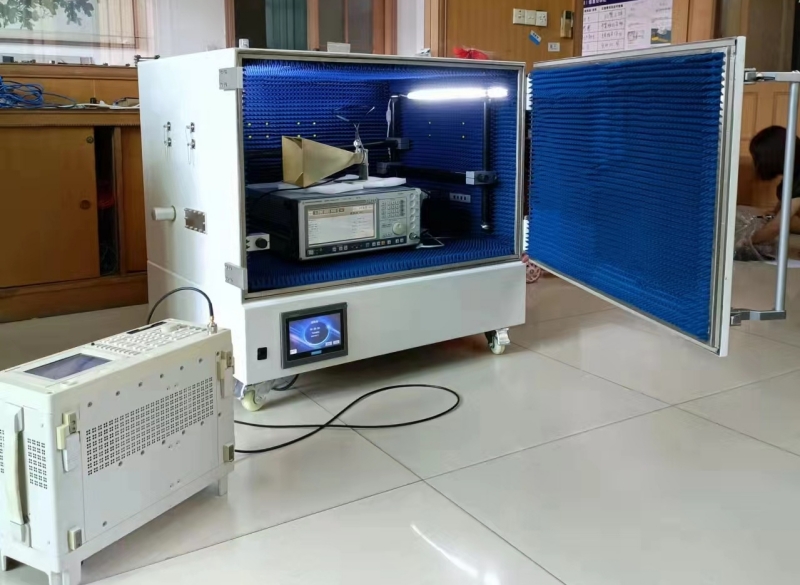

Motorized Turntable Shielded Box
查看关联子产品

Motorized Turntable Shielded Box

Dedicated shielded box for Wi-Fi 6 router directional performance testing and related RF tests requiring DUT rotation.

  • Sample size: 950 x 650 x 550 (customizable)
  • Filtered interfaces: waveguide, RJ45*4, USB3.0*2, DB9, DC*1, AC*1
  • Motorized turntable: maximum precision 0.05°
  • Turntable functions: forward/reverse rotation, current angle, 5-speed adjustment, 2D rotation
  • Motion control: serial port / touchscreen / Ethernet
  • Maximum load: 100kg
Wi-Fi 6 Dedicated Test Shielded Box

Common Shielded Box Models

R&D / Wireless Module Testing

R&D / Wireless Module Testing

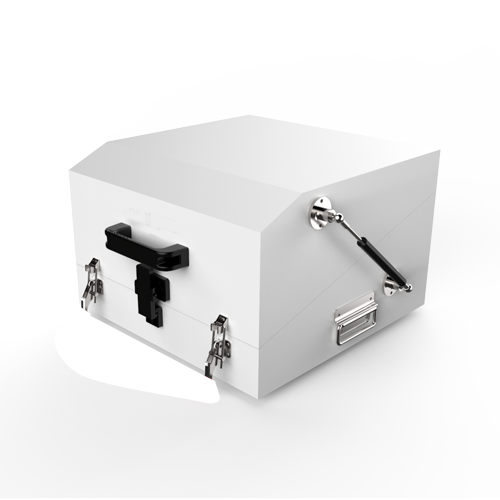

Manual clamshell shielded box

Preferred Choice for Wireless Module R&D Testing

Manual clamshell shielded boxes are suitable for wireless test R&D departments and product inspection departments for lower-frequency products. The structure is simple and easy to use: open the flip cover and start testing. In general, the internal working size only needs to be larger than the DUT, and the size can be customized. It is especially suitable for small wireless modules and GPS testing, with low price, easy operation, and strong cost performance.

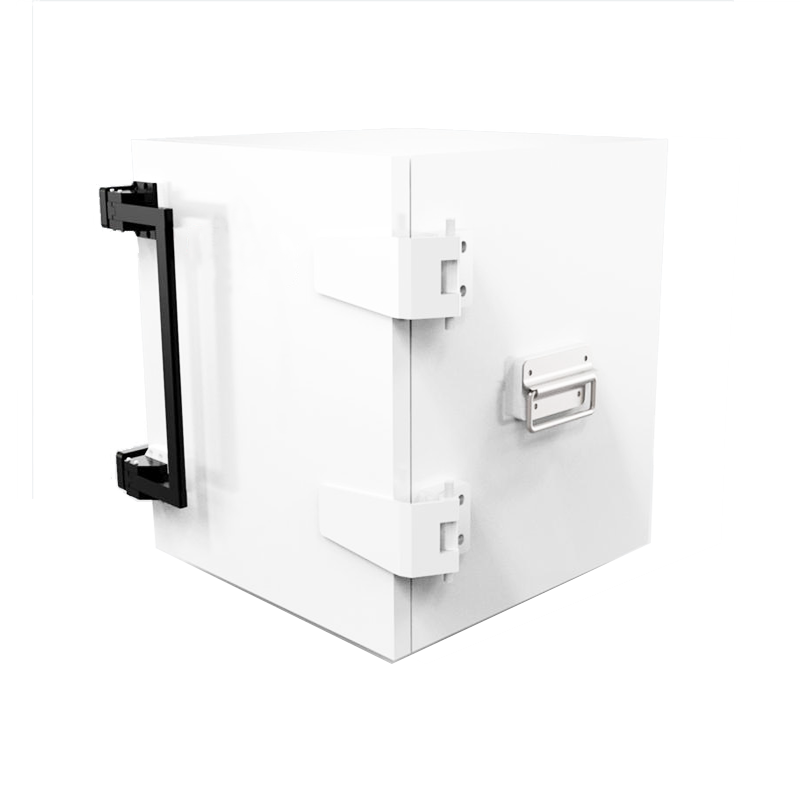

R&D / Product Testing

R&D / Product Testing

Manual pull-door shielded box

Preferred Choice for Smart Product Testing

Manual pull-door shielded boxes can be freely customized in size. They are especially suitable for testing wireless communication functions of smart finished products and IoT products. Larger products require larger internal working space, and the side pull-door design reduces opening effort. It is suitable for quality and R&D departments, offering spacious interior, simple structure, and excellent value.

Electromagnetic Shielding Enclosure

Electromagnetic Shielding Enclosure

Pneumatic/manual shielded box with high isolation

Preferred Choice for Batch Product Testing

Pneumatic clamshell shielded boxes are especially suitable for production lines that batch test wireless performance of smart products. Pneumatic opening avoids operator fatigue from long-term manual opening and greatly improves wireless test efficiency. It offers automated efficiency while reducing automation equipment cost.

Soundproofing and Acoustic Equipment

Soundproofing and Acoustic Equipment

Quiet boxes and acoustic environment construction

Preferred Choice for Automated Line Testing

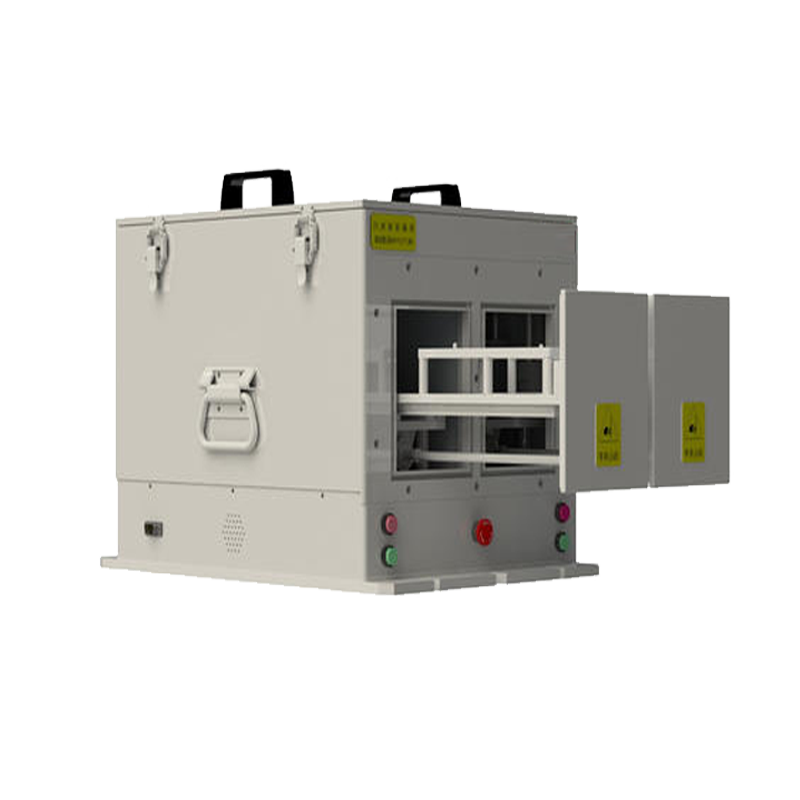

Automated drawer-type shielded boxes are generally used on highly automated production lines for wireless testing of electronic smart products. Combined with line automation equipment, pneumatic drawer-type shielded boxes can support automatic wireless function testing by robots or manual loading devices, improving efficiency and saving labor.

Functional / Custom

Functional / Custom

Fully customized shielded boxes

Function-Compatible Custom Shielded Box

Function-compatible shielded boxes can be integrated with existing equipment and instruments according to the customer’s operating environment, serving as part or all of a complete system. Test environments, dimensions, and appearance can be freely customized. Common forms include electromagnetic shielded cabinets, viewing windows, and opening designs.

Requirement Consultation

Requirement Consultation

phone:13510604275

Professional, Dedicated, Service-Oriented

We specialize in wireless testing and serve every customer with care and professionalism.

Why Choose Our Customization Service?

📐

Flexible Customization on Demand

Supports seamless customization of any size, interface type (RJ45, USB, DB9, etc.), and pneumatic/manual switching method.

🛡️

High-Performance Engineering Standards

Uses high-quality absorber materials and high-performance multi-layer shielding damping to ensure stable performance across wide frequency bands, including above 10GHz.

🖥️

Advanced R&D and Design Capabilities

Complete CAD/3D structural modeling supports complex production-line fixture integration and electromagnetic simulation, avoiding blind mold development.

⚡

Fast and Efficient Delivery

Initial concept can be provided in as fast as 3 hours, detailed CAD/3D structure drawings in 3 days, and standard custom parts in as fast as 7 days, helping protect your R&D and production schedule.

🏭

Direct Supply from Source Factory

Self-owned machining and shielding assembly workshops, with no middlemen. Compared with trading companies, procurement cost can be reduced by 30% under the same performance requirements.

🔬

100% Full-Band Factory Testing

No inflated specifications. Every shielded box is strictly tested at key frequency bands using a network analyzer and RF signal source before delivery, with a professional EMC test report included.

🤝

2-Year Whole-Unit Warranty

We provide a 2-year free whole-unit warranty, exceeding the common 1-year industry standard. Key pneumatic components are rated for 100,000 failure-free opening/closing cycles, with lifetime remote technical support.

Source factory support removes middle steps. Within one hour, we match you with a core engineering team to provide an initial drawing concept.
