Microwave Horn Antenna

A compact horn test antenna covering 1–8 GHz with stable VSWR, high gain, and a small footprint. It is ideal for R&D and production testing of phones, Wi-Fi, Bluetooth, and other wireless modules.

Model
ANT1080
Frequency Range
1–8 GHz
VSWR
Typ. <=1.7:1
Polarization
Linear

Ultra-Wide 1–8 GHz Coverage

Covers mainstream wireless bands including cellular, Wi-Fi, Bluetooth, and GPS with one antenna.

Excellent VSWR Performance

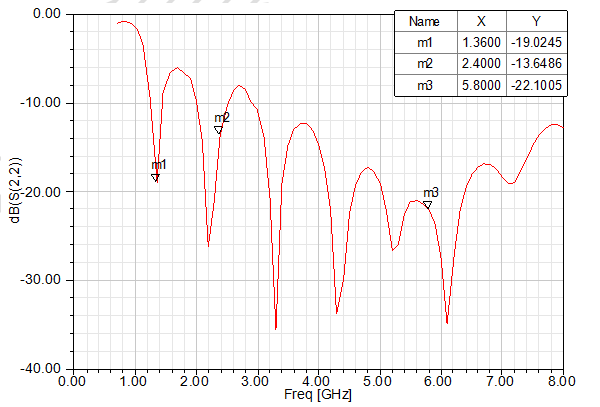

Typical VSWR below 1.7 ensures efficient signal transfer and accurate, repeatable results.

High Gain Performance

Gain reaches 11 dB at key frequencies such as 5.8 GHz for sensitive signal capture.

Compact and Versatile Design

The small, precision-built antenna saves test space and suits wireless module R&D and production testing.

Built for Precise Wireless Testing: ANT1080 Horn Test Antenna

The JC-ANT1080 compact horn antenna combines ultra-wide 1–8 GHz coverage, stable VSWR, high gain, and a compact design. It is ideal for accurate R&D and production testing of phones, Bluetooth, Wi-Fi, GPS, and IoT wireless modules.

Key Advantages

  • Ultra-wide 1–8 GHz coverage: One antenna supports mainstream wireless bands.
  • Excellent signal integrity: Typical VSWR better than 1.7 minimizes reflections.
  • High gain: Gain reaches 11 dB at 5.8 GHz and 12.7 dB at 8 GHz.
  • Compact precision design: 90 x 84 x 150 mm, easy to integrate into any test setup.

It provides dependable support for product verification and rapid production inspection.

Horn Antenna Specifications
