Sliding-door Shielded Soundproof Box
Shielded Boxes

Sliding-door Shielded Soundproof Box

一款专为Wireless Communication Equipment设计的手动拉门式RF Shielded Boxes,提供卓越的屏蔽与Sound Insulation Performance,Robust Construction,Easy Operation,是Cost-effective的RF Testing Solution。

材质:
钣金
外观颜色:
米黄色
Shielding Performance:
0.8GHz-6GHz≥70dB
工作Dimensions:
(L ) 600x(W)600x(H)600mm±5mm

卓越的屏蔽性能

在0.8GHz至6GHz的宽广Frequency范围内,提供不低于70dB的稳定Shielding Performance,确保TestingEnvironment纯净,数据精准。

超大工作空间

拥有600x600x600mm的宽敞内部Dimensions,可轻松容纳无线网卡、路由器、手机等多种Dimensions的待测Equipment。

广泛的Testing应用

全面支持无线通讯、EMI/EMS、耦合Testing及RF功能Testing,是研发和生产线上的理想选择。

坚固耐用且经济实用

采用高品质钣金制造,Robust Construction,密合性好。手动拉门设计,操作简单省力,是目前极具性价比的屏蔽TestingSolution。

高效、经济、可靠:手动拉门式RF Shielded Boxes——您的理想射频Testing伙伴

在日益复杂的无线电Environment中,精准可靠的射频Testing是保障产品质量的关键。我们推出的手动拉门式RF Shielded Boxes,专为满足现代通讯Equipment的严苛检测需求而设计。凭借其超大工作Dimensions和卓越的屏蔽Sound Insulation Performance,它已成为无线网卡、路由器、蓝牙Equipment及手机等产品Testing领域的优选Solution。

本产品采用高品质钣金精心打造,不仅保证了箱体的密合性与坚固结构,更通过精湛的工艺确保了长期稳定的屏蔽性能。手动拉门式设计结合电气控制,让操作过程变得前所未有的简单省力。我们相信,卓越的设计与优良的品质,使其成为目前市场上最具性价比和实用性的Shielded Soundproof Box。

核心功能与应用领域

我们的手动拉门式RF Shielded Boxes能够完美胜任多种复杂的Testing任务,是您实验室和生产线上不可或缺的工具:

  • 无线通讯Testing:为各类无线Equipment提供一个纯净、无干扰的TestingEnvironment。
  • EMI/EMSTesting:有效进行电磁干扰(EMI)和电磁敏感度(EMS)Testing,助力产品通过合规认证。
  • 耦合Testing:可配合耦合天线(需另配)进行精确的信号耦合Testing。
  • RF功能Testing:全面验证Equipment的射频(RF)功能和性能指标。

详细性能指标

为了让您更全面地了解产品,以下是详细的Technical SpecificationsParameters:

材质 钣金
外观颜色 米黄色
工作Frequency 0.8GHz - 6GHz
Shielding Performance 0.8GHz - 6GHz ≥70dB

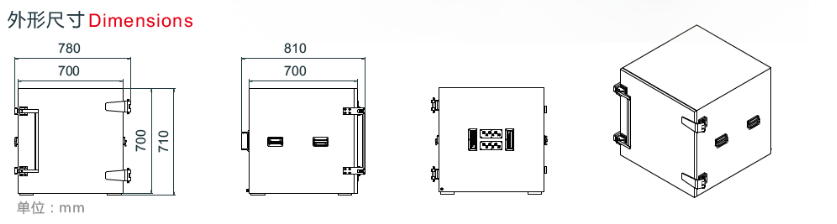

工作Dimensions (L*W*H) 600 x 600 x 600 mm ±5mm
箱体Dimensions (L*W*H) 700 x 700 x 700 mm ±5mm
外观Dimensions (L*W*H) 810 x 780 x 710 mm ±5mm
