Compact Manual Shielded Box
A compact manual shielded box with >70dB shielding performance, four USB3.0 ports, and multiple SMA interfaces for flexible field RF testing.
View Details

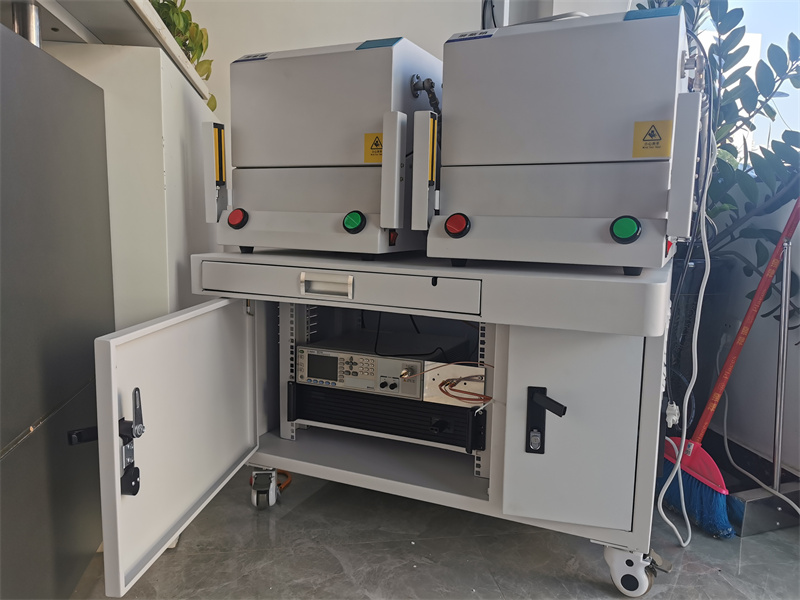

Pneumatic Clamshell Shielding Box
Pneumatic Clamshell Shielding Box,专为Wireless Device Testing提供≥70dB的卓越Shielding Performance,确保在0.7-5.8GHz频段内获得精准、无干扰的Testing Environment。
卓越的电磁Shielding Performance
在0.7-5.8GHzFrequency范围内提供不低于70dB的稳定屏蔽效果,有效隔绝外部干扰,保障Testing精度。
广泛的Testing应用场景
全面支持无线通讯、EMI、EMS、耦合及RF功能Testing,是研发、生产和质检的理想选择。
坚固耐用的结构设计
采用优质钣金Materials打造,结构稳固,配合便捷的贝壳式汽动开合方式,提升Testing效率与操作体验。
精准Testing的基石:Pneumatic Clamshell Shielding Box
在日益复杂的无线通信世界中,电磁干扰是影响产品研发、生产和质量检测精度的主要障碍。我们的Pneumatic Clamshell Shielding Box,正是为此挑战而生。它采用高品质导电与导磁Materials精心打造,能够构建一个纯净、无干扰的电磁Environment,将外界干扰彻底隔绝。
无论是手机、路由器、蓝牙Equipment还是其他无线产品,这款RF Shielded Boxes都能为您提供一个稳定可靠的Testing平台,确保每一次Testing数据的真实与精确。
核心功能与应用领域
我们的RF Shielded Boxes专为满足最严苛的Testing需求而设计,广泛适用于:
- 无线通讯Testing: 确保信号收发的稳定性和准确性。
- EMI/EMS Testing: 进行专业的电磁干扰与电磁耐受性Testing。
- 耦合Testing: 支持配置耦合天线,进行精确的信号耦合分析(天线需另配)。
- RF 功能Testing: 全面评估无线射频模块的各项性能指标。
产品性能Specifications
为了确保卓越性能,我们对每一个细节都进行了严格把控:
| 工作Frequency | 0.7GHz ~ 5.8GHz |
| 屏蔽效果 | ≥ 70dB @ 0.7GHz ~ 5.8GHz |
| 工作Dimensions (L*W*H) | 500 x 500 x 260 mm (±5mm) |
| 箱体Dimensions (L*W*H) | 560 x 560 x 340 mm (±5mm) |
| 外观Dimensions (L*W*H) | 690 x 680 x 420 mm (±5mm) |
| 材质 | 优质钣金 (10+2) |
| 净重 | 约 39 KG |
| 通信端口 | DB9 |
| 外观颜色 | 米黄色 |
选择我们的Pneumatic Clamshell Shielding Box,为您的产品质量与性能保驾护航。立即Contact Us,获取更详细的解决Solution!
相关Recommended Products
Shielded Room / Shielded Chamber
A high-performance electromagnetic shielded room designed for precision instruments and wireless device testing. It effectively blocks up to 70 dB of electromagnetic interference across the 0.8 GHz to 6 GHz band, ensuring a clean test environment and accurate results.
High-Frequency Shielded Room
A high-performance mobile shielded room for Bluetooth, radio, and other wireless product testing, providing >=75 dB RF interference isolation for clean, accurate results.
Functional Acoustic Test Box
An economical pneumatic acoustic shielding box designed for audio devices such as mobile phones, earbuds, and compact speakers. It provides an excellent sound-isolated environment to help ensure accurate product noise inspection.
