Double-Drawer Manual Shielding Box
Shielded Boxes

Double-Drawer Manual Shielding Box

A high-performance drawer-style manual shielding box that provides an efficient, interference-free test environment for wireless devices. It is easy to operate and suitable for EMI, RF, coupling, and related test scenarios.

Material
Welded aluminum plate
Communication Port
DB9
Exterior Color
Beige white
Working Stroke
245 mm

Excellent Shielding Performance

Provides stable shielding effectiveness of at least 70 dB across a broad 0.6 GHz to 6 GHz frequency range, effectively isolating external electromagnetic interference.

Wide Test Applications

Supports wireless communication, EMI/EMS, coupling, and RF functional testing, making it suitable for both R&D and production-line use.

Convenient Drawer Design

The drawer-style structure simplifies DUT loading and unloading, significantly improving test efficiency and operating convenience.

Durable Structure

The enclosure uses welded aluminum-plate construction for a strong and durable structure, helping ensure long-term stability and reliability.

Drawer-Style Shielding Box: Isolate Interference for Accurate Testing

In an increasingly complex wireless communication environment, a clean and interference-free test space is essential for ensuring product quality and performance. Our drawer-style shielding box is designed for this purpose. It uses high-quality conductive materials and a precise structure to confine electromagnetic energy within a controlled space, providing a stable and reliable electromagnetic quiet zone for accurate wireless device test data.

Core Functions and Applications

This is more than a shielding box; it is a practical tool for R&D and quality inspection workflows. It is widely used in:

  • Wireless communication testing: Provides an ideal test environment for mobile phones, routers, Bluetooth devices, and other wireless products.
  • EMI/EMS testing: Supports electromagnetic interference, EMI, and electromagnetic susceptibility, EMS, testing to help meet compliance requirements.
  • Coupling testing: Works with a coupling antenna, configured separately, to efficiently complete signal coupling tests.
  • RF functional testing: Provides comprehensive and reliable evaluation of RF performance.

Excellent Performance from Precision Manufacturing

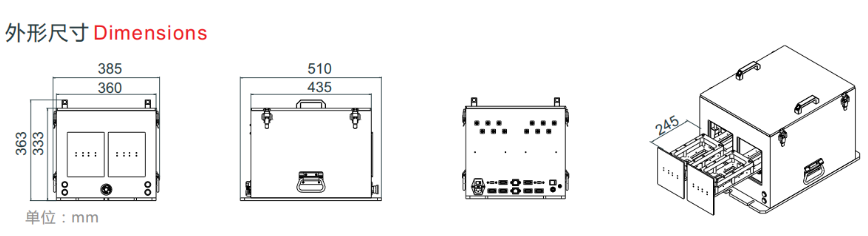

Every detail is refined to ensure strong product performance and meet demanding test requirements. See the detailed specifications below.
